What is this?

Two MCP servers that let Claude control RF test equipment:

mcnanovna

Controls NanoVNA-H vector network analyzers over USB serial. 78 tools for sweeps, calibration, analysis, and 3D radiation patterns.

mcpositioner

Controls ESP32 dual-axis antenna positioners over WiFi. 5 tools for stepper motor positioning and automated measurement grids.

Cross-Server Workflows

Both servers work together for automated 3D antenna pattern measurement. Claude orchestrates positioning and VNA measurements across the grid.

Web UI

Optional Three.js 3D viewer for radiation patterns. Real-time visualization as measurements are taken.

What Can It Do?

Direct access to professional RF measurement capabilities:

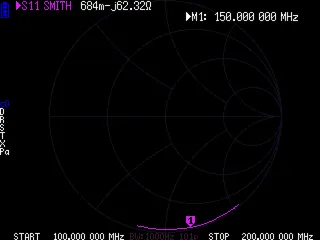

Smith chart display showing impedance plot
Impedance analysis on Smith chart

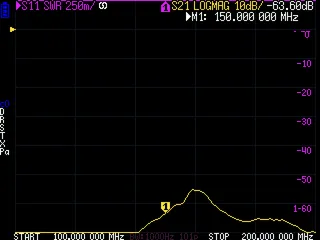

SWR measurement trace
SWR sweep across frequency
LC matching network calculation
Automatic LC match calculation

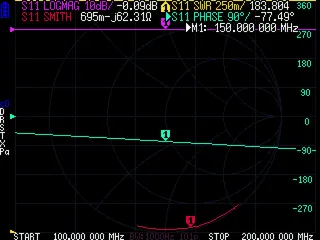

Multiple trace display
Multi-trace S-parameter display

Quick Install

Terminal window
# Add both servers to Claude Code
claude mcp add mcnanovna -- uvx mcnanovna
claude mcp add mcpositioner -- uvx mcpositioner

Then ask Claude to analyze your antenna, measure a filter, or run a 3D pattern sweep.

Hardware

NanoVNA-H

The NanoVNA-H (or H4) connects via USB serial and is auto-detected. No drivers needed on Linux — just plug in and go.

ESP32 Positioner

Optional dual-axis antenna positioner for automated 3D pattern measurement:

  • 2x NEMA 17 steppers + TMC2209 drivers
  • StallGuard sensorless homing
  • WiFi HTTP API for remote control
  • Firmware and KiCad schematics included

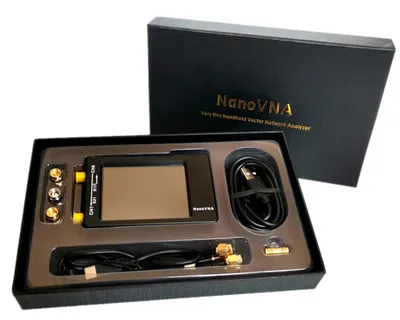

NanoVNA-H vector network analyzer
NanoVNA-H — 50kHz to 1.5GHz VNA

Example Prompts

Once installed, try asking Claude:

  • “Connect to my NanoVNA and sweep 7.0-7.3 MHz to check my 40m dipole”
  • “Measure the insertion loss of this BPF from 144-148 MHz”
  • “What’s the impedance at the resonant frequency? Suggest an LC match.”
  • “Run a 3D radiation pattern sweep at 15° resolution”
  • “Export the S11 data as a Touchstone file”
